Elastic Search

This Block is used to perform a search on an Elastic Search index.

It expects to receive an object on the input edge that contains the Elastic query object in the first array element and other parameters in the second, both of which are provided by the the AI Search Prompt Block.

Typical Flow​

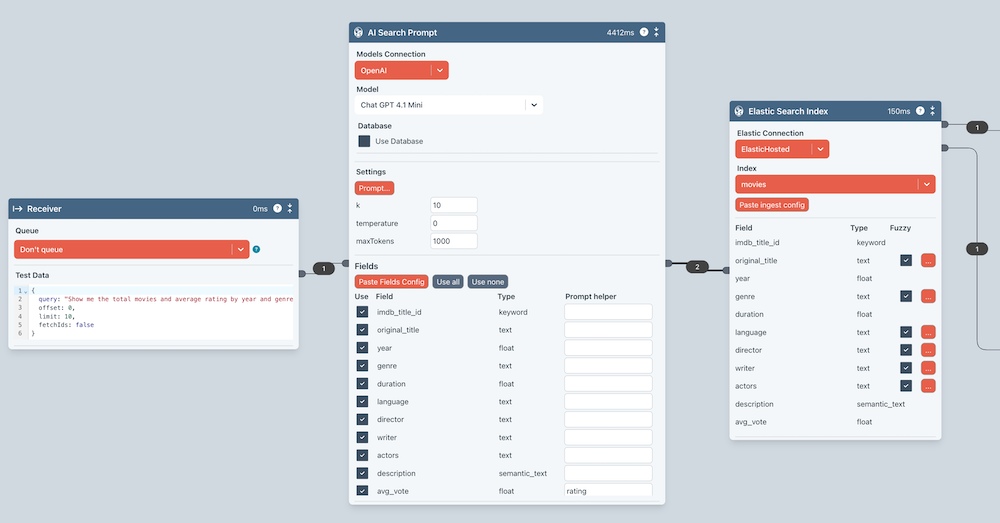

Below is an example of a typical Flow.

Elastic search flow

Configuration and testing​

We recommend using Ziggy's Debugging to configure the Flow. This lets you set up without calling the Flow externally until you are ready.

Flow Input​

Search Flows should pass in an input object containing the query, pagination details etc.

This is explained in Search Flows.

Test Data​

You can put the Flow Input it the data section of the Receiver. You can see this in the above screenshot.

Configuration​

Connection​

You should select an Elastic Connection in Connections.

Index​

Select the Elastic Search index from the dropdown.

Paste Ingest Config​

If you have created and configured the index using the Elastic Ingest Block, then you should press the Copy Field Config button in that Block. Then press the Paste Ingest Config button in this Block to bring over the configuration.

Fields configuration​

Once the fields are visible at the bottom of the Block, you can check the Fuzz box where you require fuzzy matching.

You will notice that this is only possible for Text type fields. Keyword fields require exact matching.
