Connections

Connections are hooks into external modules along with a corresponding setup that you can reference from

  • a Javascript Block
  • a Block that relies on that Connection as a part of its configuration.

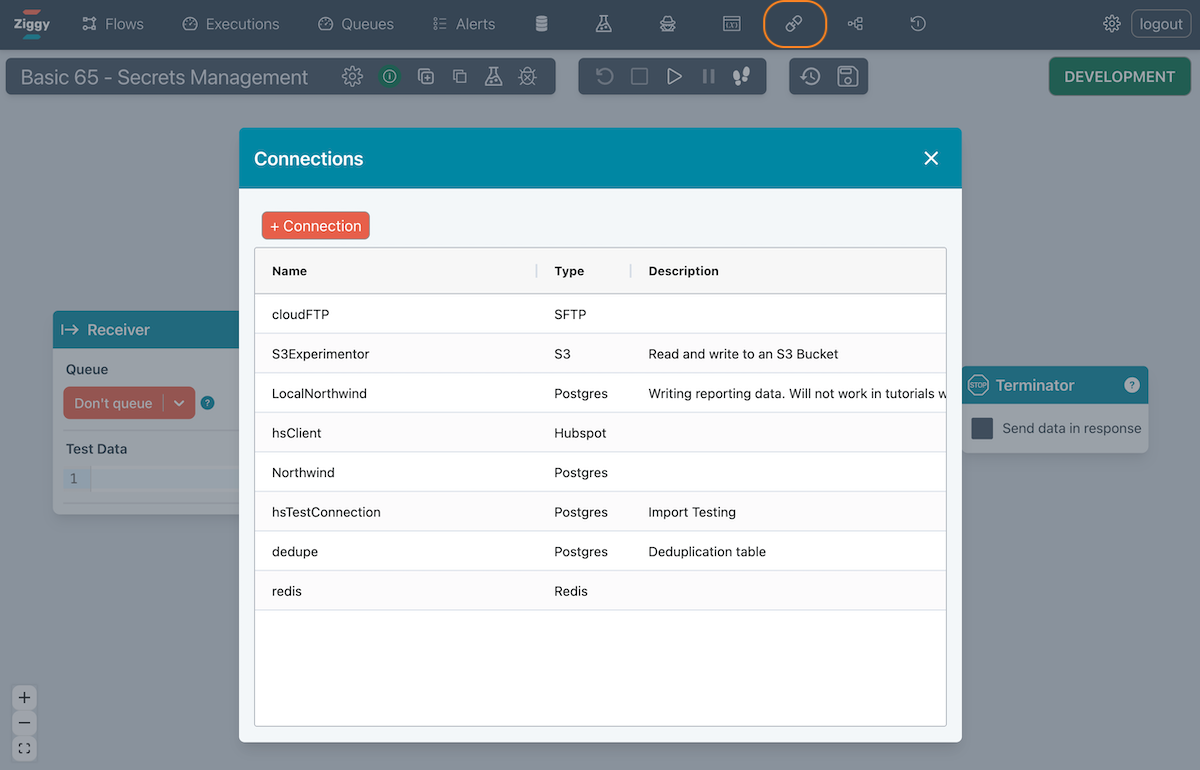

Connections are managed the Ziggy UI.

Connections

See below for the currently available connection types.

It is very easy to add any other connection types. Please inquire if you would like a new Connection type to be added.

Configuration​

The configuration you enter is an object. The example below shows a Hubspot connection object.

Connection object

Development and Production​

Note that you can specify a different connection object for Development and Production modes. Click here for details on switching modes.

Secrets​

It is good practice to use the Secrets Manager to avoid exposing sensitive information in the Connection object.

You can specify a secret as shown in the above screenshot.

Test Connection​

Use the Test Connection button to test your connection definition. You (currently) need to save and open the dialog again to test after making changes.

OpenAI/ChatGPT​


{
    apiKey: 'your-api-key | secrets.******',
    organization: 'your-org-****',
    project: 'your-proj-***'
}

The typical connection objects are shown below. Full details can be found in Elastic docs. The Ziggy connection object is what you are looking for. Note that the object is different for Severless, Hosted and Local offerings.

Serverless

{
  node: 'https://my-elasticsearch-project-xxxx.es.eu-west-1.aws.elastic.cloud:443',
  auth: {
    apiKey: 'apiKey | secrets.******',
  }
  serverMode: 'serverless',
}

Hosted

{
    cloud: {
        id: 'My_deployment:your_deployment_id='
    },
    auth: {
        username: 'elastic',
        password: 'password | secrets.*****'
    }
}

Hubspot object​

{
    accessToken: 'apiKey | secrets.*******',
    numberOfApiCallRetries: 5,
}

SalesForce object​

{
    username: "myemail@agentforce.com",
    password: "password  | secrets.******",
    token: 'token | secrets.******'
}

SFTP object​

{
    host: 'my-sftp-server.com',
    port: '22',
    username: 'username',
    password: 'password  | secrets.******'
}

AWS S3 object​

{
    region: 'us-east-1',
    credentials: {
      accessKeyId: 'keyId | secrets.******',
      secretAccessKey: 'key | secrets.******',
    },
}

Azure Blob​

{
    accountName: 'storage_account',
    accountKey: 'key | secrets.******',
}

Upsales​

{
    url: 'https://power.upsales.com/api/v2/',
    apiKey: 'apiKey | secrets.******'
}

Postgres​

{
    host: 'connectionUrl',
    user: 'username',
    password: 'password | secrets.******',
    database: 'my_database',
    port: 5432
}

SQL Server​

{
  user: 'user-name',
  password: 'password | secrets.******',
  database: 'database-name',
  server: 'server-name',
  options: {
    encrypt: true, // required for Azure
    trustServerCertificate: false
  }
}

Snowflake​

SnowFlake can be tricky to configure. The recommended configuration is to use an access token, which is shown below.

You will need to create this in SnowFlake first.

The following must be done by an ADMIN user.

Create a Network Policy​

CREATE NETWORK POLICY MY_PAT_POLICY ALLOWED_IP_LIST = ('0.0.0.0/1', '128.0.0.0/1') BLOCKED_IP_LIST = () COMMENT = 'Network policy for programmatic access token from Node.js server';

Attach Policy​

ALTER USER USER_NAME ADD PROGRAMMATIC ACCESS TOKEN NEW_PAT_NAME NETWORK_POLICY = MY_PAT_POLICY DAYS_TO_EXPIRY = 365;

This will generate a new PAT that will be displayed and must be copied immediately.

Note that the reported errors are generally misleading and all parameters will need to be checked regardless of error message.

{
  account: 'XXXXXX-XXXXXX',
  username: 'USER_NAME',
  password: 'eyJ....... | secrets.******',
  authenticator: 'PROGRAMMATIC_ACCESS_TOKEN',
}

AWS MQQT​

{
    endPoint: 'xxxxxx-ats.iot.us-east-1.amazonaws.com',
    clientId: 'my-thing-name',
    certificate: '-----BEGIN CERTIFICATE-----\n...\n-----END CERTIFICATE----- | secrets.******',
    privateKey: '-----BEGIN RSA PRIVATE KEY-----\n...\n-----END RSA PRIVATE KEY----- | secrets.******',
    ca: '-----BEGIN CERTIFICATE-----\n...\n-----END CERTIFICATE----- | secrets.******',
}

Generic MQQT​

Use this for MQTT platforms other than AWS IoT Core.

TLS Enabled​

{
    brokerUrl: 'mqtt.example.com',
    port: 8883,
    clientId: 'my-client-id',
    tlsEnabled: true,
    username: 'username',
    password: 'password | secrets.******',
    caCert: '-----BEGIN CERTIFICATE-----\n...\n-----END CERTIFICATE----- | secrets.******',
    clientCert: '-----BEGIN CERTIFICATE-----\n...\n-----END CERTIFICATE----- | secrets.******',
    clientKey: '-----BEGIN RSA PRIVATE KEY-----\n...\n-----END RSA PRIVATE KEY----- | secrets.******',
}

No TLS​

{
    brokerUrl: 'mqtt.example.com',
    port: 1883,
    clientId: 'my-client-id',
    tlsEnabled: false,
    username: 'username',
    password: 'password | secrets.******',
    caCert: 'ca-certificate | secrets.******',
    clientCert: 'client-certificate | secrets.******',
    clientKey: 'client-private-key | secrets.******',
}
