Monitoring

Monitoring is important for higher load scenarios.

You should pay particular attention to the System Queue overflow (on the Queues page) as this will slow overall performance and is a sign that performance needs to be adjusted or a Ziggy cluster is required.

You should also be aware of Ziggy's Performance Tuning options.

Flow Execution Monitor​

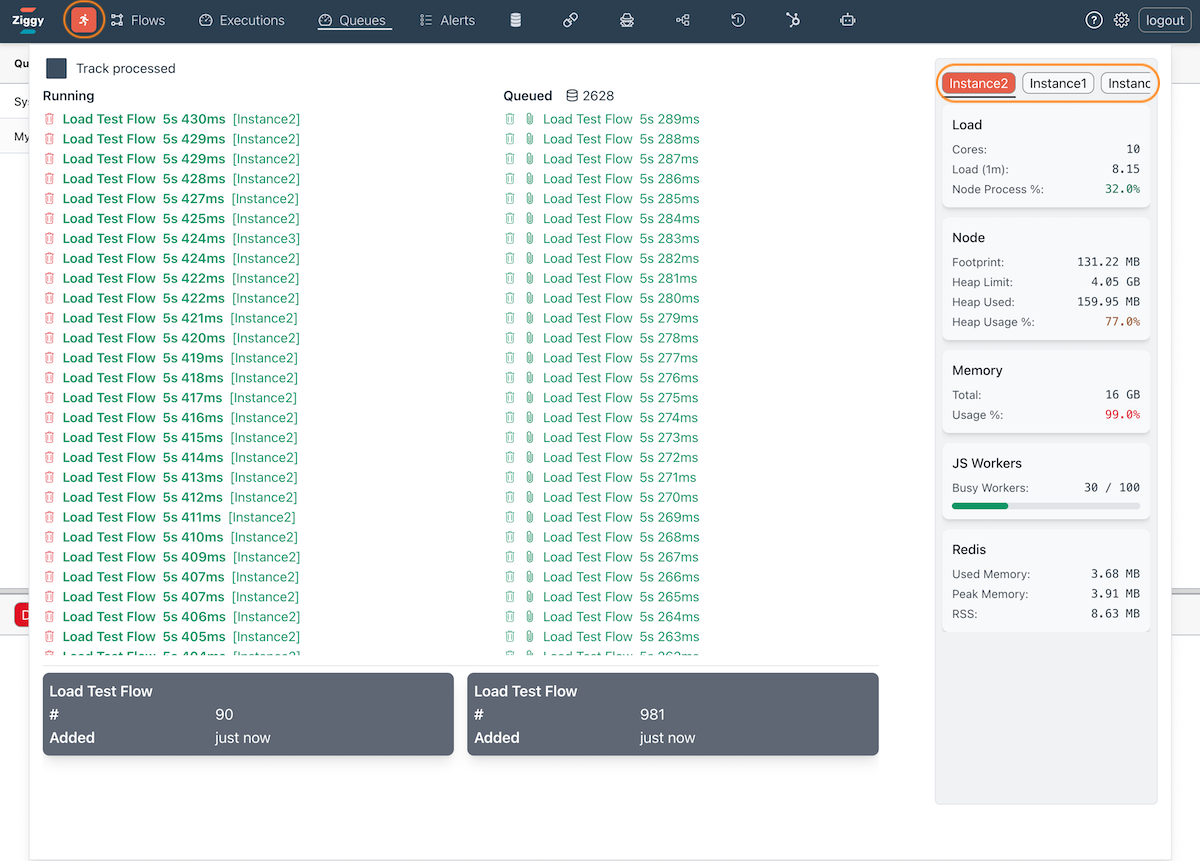

The Flow Execution Monitor - shows you live flow throughput and key server indicators (CPU, Memory, System Queue status).

flow execution monitor

System Monitor​

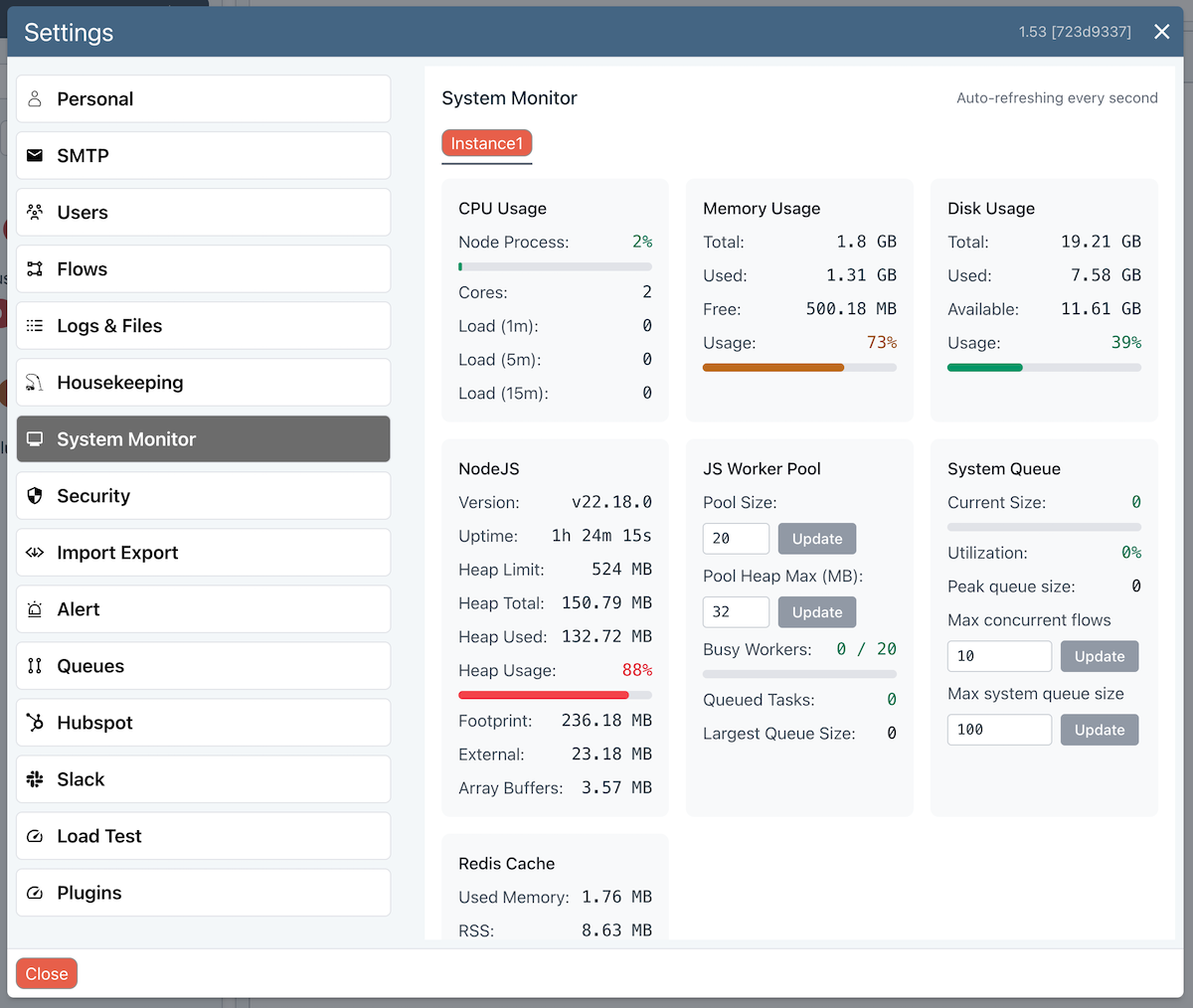

The System Monitor, in Global Setting provides more detail and allows performance fine-tuning.

System monitor

Queues page​

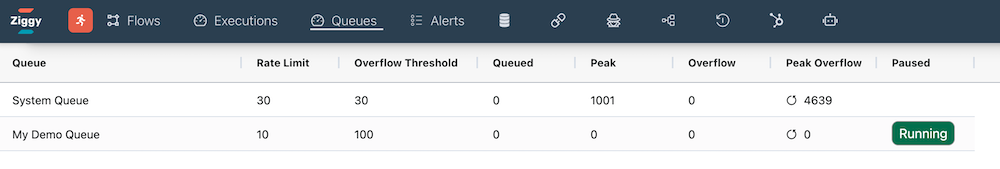

The Queues page shows you key System Queue metrics as well as user queues for rate-limiting.

Queue monitor

If the System Queue Peak Overflow value is non-zero, this is a sign that some performance tuning may be needed or another server adding to the cluster.

You can press the icon in the Peak overflow column to reset the peak value after adjusting performance values.
